Product Details
Place of Origin: Fengcheng, China
Brand Name: FIRE
Certification: CE, ISO
Model Number: HX60W
Payment & Shipping Terms
Minimum Order Quantity: 10 Pieces
Price: welcome to inquiry
Packaging Details: Carton: 1. Fire Brand Packaging; 2. Neutral Packaging; 3. Customized Packaging (please contact our sales)
Delivery Time: 5-35 working days
Payment Terms: T/T, Western Union
Supply Ability: 20000pcs per month
Turbo Model: |
HX60W |
Part No.: |
4043620 |
OE No.: |
4025320 |
Cooling System: |
Oil-cooled |
Shaft Wheel Material: |
42CrMoA |
Turbine Wheel Blade Material: |
K18 |
Compressor Wheel Material: |
ZL201 |
Bearing House Material: |
HT200 |
Turbine House Material: |
Nodular Cast Iron |
Turbo Model: |
HX60W |
Part No.: |
4043620 |
OE No.: |
4025320 |
Cooling System: |
Oil-cooled |
Shaft Wheel Material: |
42CrMoA |
Turbine Wheel Blade Material: |
K18 |
Compressor Wheel Material: |
ZL201 |
Bearing House Material: |
HT200 |
Turbine House Material: |
Nodular Cast Iron |

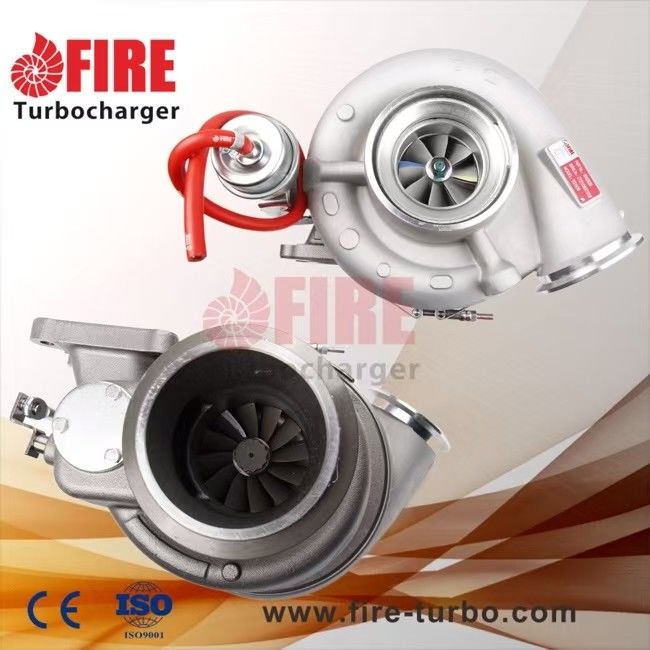

HX60W Turbo 4043620 4025320 Cummins Various With ISX2 Engine, Komatsu Industrial Gen Set S500 With ISX2 Engine
2000-08 Cummins Various HX60W Turbocharger 4043620
Specifications
| Turbo model | HX60W |
| Part No. | 4043620 |
| OE No. | 4025320 |
| Shaft Wheel Material: | 42CrMoA |
| Turbine Wheel Blade Material: | K18 |
| Compressor Wheel Material: | ZL201 |
| Bearing House Material: | HT200 |
| Turbine House Material: | Nodular Cast Iron |
| Cooling System: | Oil-cooled |
| ENGINE: | ISX2 Non-EGR |
| Capacity: | 15L |
| KW: | 600 |
| Year: | 2000-2008 |
| G.W: | KG |
| Size: | CM |
| Packaging: |
1. Fire Brand Packaging 2. Neutral Packaging 3. Customized Packaging |
It can replace:
| 3590901 | 3590902 | 3592158 | 3592518 |
| 3592544 | 3592548 | 3593613 | 3593614 |
| 3594595 | 3594763 | 3596617 | 3596624 |
| 3596625 | 3800770 | 3800770NX | 3800770RX |
| 3800997 | 3800997NX | 3800997RX | 4025320NX |
| 4025320RX | 4089760 | 4090043 | 5324942 |
| 4089760 | 4089760NX | 4089760RX | 4090043 |
| 4090043NX | 4090043RX | 4038282 | 4038283 |
| 4040850 | 4040851 | 4043621 | 4043622 |
| 53227754H | 5323079 | 5327752 | 5327753 |
| 532775300 | 53275300H | 532775300HX | 5327753H |
| 5327753HX | 5327754 | 532775400 | 532775400HX |
| 5327754H | 5327754HX | ||
Applications:
2006-08 Cummins Various with ISX2 Engine
2000-08 Komatsu Industrial Gen Set S500 with ISX2 Engine
Other models:
| Turbo Model | Part No. | OE No. | Engine | Application |
| HX30W | 3592315 | 3800986 | 4BT | Cummins Various |
| HX30W | 4040353 | A3960907 | 4BT | Cummins Various |
| HX30W | 3592121 | 3802906 | 4BTA | Cummins Truck |
| HX30W | 3598543 | 4089320 | 4BTA | Cummins Truck |
| HX35 | 3536338 | 3802862 | 6BT/6BTA | Cummins Earth Moving |
| HX35 | 3537132 | 3802770 | 6BT | Cummins Truck |
| HX35 | 3536473 | 3802819 | 6BT/6BTA/6BTAA 160-190HP | Cummins Truck |
| HX35 | 3590092 | 3800988 | 6BTAA 210HP | Cummins Truck |
| HX35 | 3539697 | 3804877 | 6BT/6BTA | Cummins Commercial Vehicle |
| HX35 | 4038475 | 4089711 | 6BTAA | Cummins Truck |
| HX35W | 3960478 | 4035375 | 6BTAA | Cummins Truck |
| HX35W | 3590808 | 3800464 | 6BT | Cummins Truck |
| HX35W | 3590104 | 3800397 | 6BTAA | Cummins Truck |
| HX35W | 4035200 | A3960408 | DCEC | Cummins Truck |
| HX35W | 3594634 | 4955743 | 6BTAA | Cummins/Kamaz S014077 Truck |
| HX35W | 3536971 | 3802767 | 6BTA | Cummins Truck |
| HX35W | 3537494 | 3802986 | 6BT | Cummins Truck |
| HY35W | 4089797 | 4043600 | 6BT 6.7 | Cummins Truck |
| HX40 | 3533000 | 3802577 | 6CT/6CTA 220HP | Cummins Truck |
| HX40W | 4038003 | 4038004 | 6CT 300HP | Cummins Truck |
| HX40W | 4038421 | 4038425 | 6CT | Cummins Truck |
| HX40W | 3597758 | 3597759 | 6CT 300HP | Cummins Truck |
| HX40W | 3536404 | 3802784 | 6CTA 300HP | Cummins Truck |
| HX40W | 3537127 | 3802810 | 6CT-240 | Cummins Industrial |
| HX40W | 3538856 | 3802909 | 6CTA 260HP | Cummins Truck |
| HX40W | 4050036 | 4050038 | 6CTAA 300HP | Cummins Truck |
| HX40W | 3783604 | 4051033 | L340/L360 | Cummins Truck |
| HX40W | 4051119 | 4051120 | 6CT8.3 | Cummins Various DCEC |
| HE211W | 2834188 | 3768010 | ISF3.8 | Cummins Truck |
| HE211W | 2840684 | 2840685 | ISF2.8 | Cummins Truck |
| HE211W | 3774196 | 3774227(A) | ISF3.8 | Cummins Truck |
| HE200WG | 3773121 | 3773122(A) | ISF2.8/3.8 | Cummins Truck |
| HX50 | 3594809 | 4024969 | M11 | Cummins Bomag |
| HX50 | 3533557 | 3803710 | M11 | Cummins Bomag |
| HX55 | 3590044 | 3800471 | M11 340-375HP | Cummins Diamond & Delta Plus Alpha |
| HX55 | 3593606 | 4024967 | M11 | Cummins Industrial |
| HX55W | 4037739 | 4037740 | CECO ISM | Cummins Truck |
FAQ:
Q: How long is the delivery time?
A: The normal production time is 25-35 days. If item is in stock, it can be sent within 5-7 days.
Q: What is the MOQ?
A: Different models have different MOQ. Please contact the salesperson for details.
Q: What are the trade terms?
A: Our trade term is EX-Work. We are responsible for delivering the goods to the customer's designated warehouse within China (Except for Ports where fees are charged).
Q: What are your terms of payment?
A: 40% deposit in advance, 60% balance before delivery.
Q: What is the materials you used?
A: We use the best materials K18.
Q: How long is the warranty period?
A: The warranty period is one year.
Q: What is the package used?
A: We only offer the Fire brand package and neutral package; If customized box needed, you have to communicate with the salesperson for the quantity and cost.
Tag: HX60W Turbocharger, 4043620, 4025320, Cummins Various with ISX2 Engine, Komatsu Industrial Gen Set S500 with ISX2 Engine
