Highlight:
Cummins Truck Turbocharger
, 3537288 Truck Turbocharger

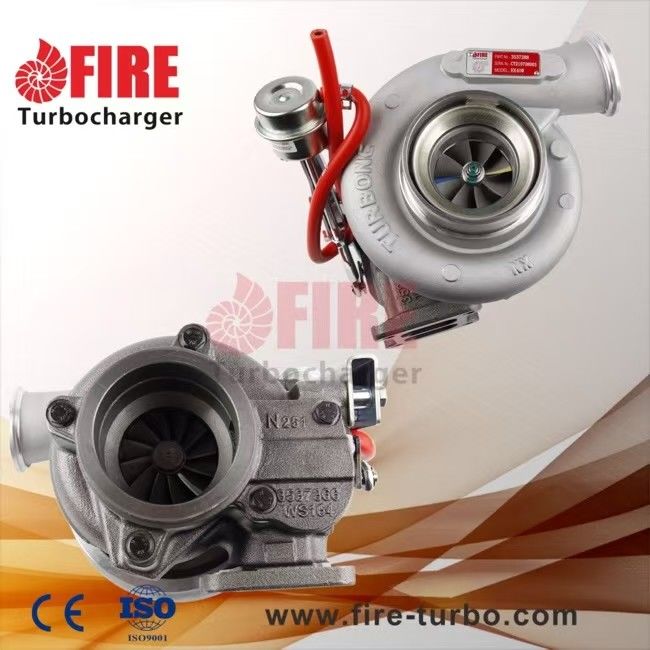

HX40W Turbo 3537288 3802784 Cum-mins Truck Turbocharger Euro 2 With 6CTA Engine
HX40W Turbo 3537288 3802784 Cum-mins Truck Euro 2 With 6CTA Engine
1995- Cum-mins Truck/Bus HX40W Turbocharger 3537288
Specifications:
| Turbo model: |
HX40W |
| Part No.: |
3537288 |
| OE No.: |
3802784 |
| Shaft Wheel Material: |
42CrMoA |
| Turbine Wheel Blade Material: |
K18 |
| Compressor Wheel Material: |
ZL201 |
| Bearing House Material: |
HT200 |
| Turbine House Material: |
Nodular Cast Iron |
| Cooling System: |
Oil-cooled |
| ENGINE: |
6CTA/6CTA Euro-2 |
| Capacity: |
8.9L |
| KW: |
300 |
| Year: |
1995 |
| G.W: |
19KG |
| Size: |
CM |
| Packaging: |
1. Fire Brand Packaging
2. Neutral Packaging
3. Customized Packaging
|
It can replace:
| 3537287 |
3537289 |
3539312 |
3536404 |
| 3593565 |
2835181 |
2839106 |
3536405 |
| 3536406 |
3537285 |
3537386 |
3590678 |
| 3802785 |
4050205 |
4050206 |
|
Applications: 1995- Cum-mins Truck Euro 2 with 6CTA Engine
Turbocharger Knowledge Hub
How does a turbocharger work, and what is its function?
- Simply put, it acts as the engine's "lungs." It recycles engine exhaust gases to spin a turbine, forcing dense, compressed air into the cylinders. This ensures every drop of fuel combusts fully, maximizing the vehicle's acceleration and towing capacity.
Why are modern cars and trucks increasingly relying on turbos?
- Because it solves the dilemma between power and fuel efficiency. Without increasing the engine's physical size, a quality turbo can boost power output by 30-40% while saving 10-20% on fuel. This reduces the carbon footprint and aligns perfectly with strict global emission standards.
As a wholesaler, how should you evaluate the quality of a turbocharger?
- The key lies in heat resistance and dynamic balancing precision. Turbos operate at extreme speeds (over 200,000 RPM) and scorching temperatures. Our products use aerospace-grade heat-resistant alloys, and every single unit passes a high-speed VSR balancing calibration before leaving the factory. This ensures zero oil leakage, no abnormal noise, and ultimate durability under extreme conditions—effectively lowering your return rates and protecting your profit margins.
What is "Turbo Lag," and how do premium products minimize it?
- "Turbo lag" is the slight delay between pressing the accelerator and feeling the power surge. To minimize this, our turbos feature aerodynamically optimized designs and lightweight billet compressor wheels. This ensures faster spool-up times, providing end-users with a smoother, more responsive driving experience.
What is the most common cause of turbo failure, and how can it be prevented?
- Over 80% of turbo failures are not due to manufacturing defects, but rather "oil starvation/contamination" or "foreign object damage (FOD)." The turbo's rotor relies entirely on engine oil for lubrication and cooling. Therefore, we highly recommend advising your mechanics to always replace the oil and filter, and clean the intake pipes when installing a new turbo. Educating your clients on this will drastically reduce unnecessary warranty claims.
Other models:
| Turbo Model |
Part No. |
OE No. |
Engine |
Application |
| HX30W |
3592315 |
3800986 |
4BT |
Cum-mins Various |
| HX30W |
4040353 |
A3960907 |
4BT |
Cum-mins Various |
| HX30W |
3592121 |
3802906 |
4BTA |
Cum-mins Truck |
| HX30W |
3598543 |
4089320 |
4BTA |
Cum-mins Truck |
| HX35 |
3536338 |
3802862 |
6BT/6BTA |
Cum-mins Earth Moving |
| HX35 |
3537132 |
3802770 |
6BT |
Cum-mins Truck |
| HX35 |
3536473 |
3802819 |
6BT/6BTA/6BTAA 160-190HP |
Cum-mins Truck |
| HX35 |
3590092 |
3800988 |
6BTAA 210HP |
Cum-mins Truck |
| HX35 |
3539697 |
3804877 |
6BT/6BTA |
Cum-mins Commercial Vehicle |
| HX35 |
4038475 |
4089711 |
6BTAA |
Cum-mins Truck |
| HX35W |
3960478 |
4035375 |
6BTAA |
Cum-mins Truck |
| HX35W |
3590808 |
3800464 |
6BT |
Cum-mins Truck |
| HX35W |
3590104 |
3800397 |
6BTAA |
Cum-mins Truck |
| HX35W |
4035200 |
A3960408 |
DCEC |
Cum-mins Truck |
| HX35W |
3594634 |
4955743 |
6BTAA |
Cum-mins/Kamaz S014077 Truck |
| HX35W |
3536971 |
3802767 |
6BTA |
Cum-mins Truck |
| HX35W |
3537494 |
3802986 |
6BT |
Cum-mins Truck |
| HY35W |
4089797 |
4043600 |
6BT 6.7 |
Cum-mins Truck |
| HX40 |
3533000 |
3802577 |
6CT/6CTA 220HP |
Cum-mins Truck |
| HX40W |
4038003 |
4038004 |
6CT 300HP |
Cum-mins Truck |
| HX40W |
4038421 |
4038425 |
6CT |
Cum-mins Truck |
| HX40W |
3597758 |
3597759 |
6CT 300HP |
Cum-mins Truck |
| HX40W |
3536404 |
3802784 |
6CTA 300HP |
Cum-mins Truck |
| HX40W |
3537127 |
3802810 |
6CT-240 |
Cum-mins Industrial |
| HX40W |
3538856 |
3802909 |
6CTA 260HP |
Cum-mins Truck |
| HX40W |
4050036 |
4050038 |
6CTAA 300HP |
Cum-mins Truck |
| HX40W |
3783604 |
4051033 |
L340/L360 |
Cum-mins Truck |
| HX40W |
4051119 |
4051120 |
6CT8.3 |
Cum-mins Various DCEC |
| HE211W |
2834188 |
3768010 |
ISF3.8 |
Cum-mins Truck |
| HE211W |
2840684 |
2840685 |
ISF2.8 |
Cum-mins Truck |
| HE211W |
3774196 |
3774227(A) |
ISF3.8 |
Cum-mins Truck |
| HE200WG |
3773121 |
3773122(A) |
ISF2.8/3.8 |
Cum-mins Truck |
| HX50 |
3594809 |
4024969 |
M11 |
Cum-mins Bomag |
| HX50 |
3533557 |
3803710 |
M11 |
Cum-mins Bomag |
| HX55 |
3590044 |
3800471 |
M11 340-375HP |
Cum-mins Diamond & Delta Plus Alpha |
| HX55 |
3593606 |
4024967 |
M11 |
Cum-mins Industrial |
| HX55W |
4037739 |
4037740 |
CECO ISM |
Cum-mins Truck |
FAQ:
Q: How long is the delivery time?
A: The normal production time is 25-35 days. If item is in stock, it can be sent within 5-7 days.
Q: What is the MOQ?
A: Different models have different MOQ. Please contact the salesperson for details.
Q: What are the trade terms?
A: Our trade term is EX-Work. We are responsible for delivering the goods to the customer's designated warehouse within China (Except for Ports where fees are charged).
Q: What are your terms of payment?
A: 40% deposit in advance, 60% balance before delivery.
Q: What is the materials you used?
A: We use the best materials K418.
Q: How long is the warranty period?
A: The warranty period is one year.
Q: What is the package used?
A: We only offer the Fire brand package and neutral package; If customized box needed, you have to communicate with the salesperson for the quantity and cost.
Tag: HX40W Turbocharger, 3537288, 3802784, Cum-mins Truck Euro 2 with 6CTA Engine
